FireMaster Concertina “Open” Fire Curtain – BS EN 1634-1

Key Information
  • Curtain Types: Fire Curtains
  • Product Standards: BS EN 1634-1
  • Standards: BS - British, EN - European
  • Orientations: Multi-sided (Concertina)
  • Integrity Ratings: Up to 180 mins
  • Radiation Ratings: Up to 30 mins
  • Special Features: Tested to BS EN 1634-1 with a classification of E180 EW30. Designs possible in open shapes such as curves, L and U shapes.
fire icon Vertical icon 180 minutes fire rating

Quick Links
Sizes and Classification | Description | Downloads | Resources

Select your Product Standard:

BS 8524-1 BS EN 1634-1 UL 10D

Concertina - Open Unlimited width x 5m drop (Maximum Size) E180 EW30 (E=Integrity, EW=Radiance)
Concertina - Open Unlimited width x 8m drop (Maximum Size) E120 EW30 (E=Integrity, EW=Radiance)

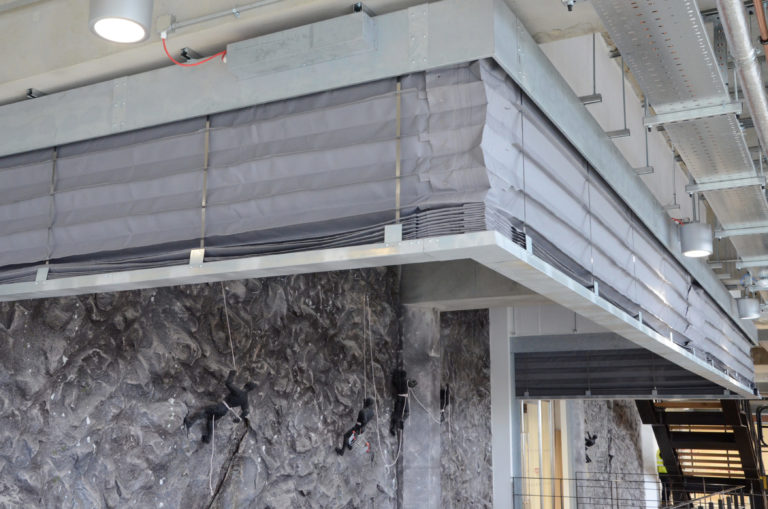

the FireMaster Concertina “open” fire curtain is Bespoke to each project and is available in open shapes, such as curves and L shapes to offer fire protection for up to 180 minutes

FireMaster Concertina Fire Curtain

Applications: Atrium, Boundary Protection, Compartmentation, Stairs and Escalators.

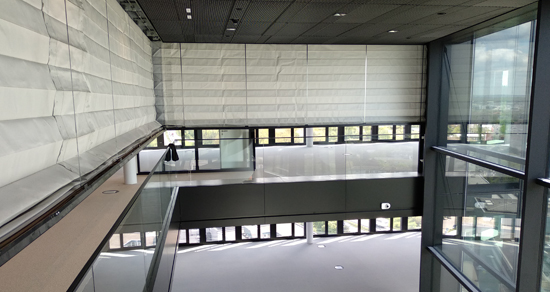

Supplied with the Coopers Total Gravity Fail Safe system (TGFS), variable speeds, side channels and controlled descent, all required by fire regulations. Developed by Coopers Fire to protect all building types, the FireMaster Concertina “open” can be applied to atria, escalators, openings in walls, stairs and lobbies and cross corridor separation and will remain hidden within the ceiling until deployed.

The FireMaster Concertina “open” fire curtain is our unique folded vertical fire curtain barrier tested to BS EN 1634-1 and Independently Third-Party Accredited to protect from fire for up 180 minutes.

Discover our Concertina Fire Curtain Installation Project List.


BIM and NBS Source

nbs source logo


Coopers Fire can offer support with your BIM Project.
Find out more about Coopers Fire BIM capabilities and how we can help.

All fire and smoke curtains are manufactured to bespoke sizes. To discuss your requirements GET IN TOUCH

Specification Download
Certificate Download
Brochure Download
Headbox - Compact - PDF Only Download
Headbox - Compact - Full Drawing Pack Download
Headbox - Standard - PDF Only Download
Headbox - Standard - Full Drawing Pack Download
Headbox Fixing, Bottom Bar and Capping Variations - PDF only Download
Headbox Fixing, Bottom Bar and Capping Variations - Full Drawing Pack Download
Fabric Datasheet Download
Declaration of Performance Download


There are different features available for the Coopers Fire range of fire curtains and smoke curtain barriers. Click on the button below to find out more about Optional Extras, Drives and Controls, Site Wiring Diagrams and other product-related downloads.
