FireMaster A1 Fire Curtain – UL 10D

Key Information
  • Curtain Types: Fire Curtains
  • Product Standards: UL 10D
  • Standards: UL - Underwriters Laboratory
  • Orientations: Vertical
  • Integrity Ratings: Up to 240 mins
  • Special Features: Tested to UL 10D for up to 240 minutes. ResQ-Window compatible. Unlimited width and up to 8m drop.
fire icon Vertical icon 240 minutes fire rating

Quick Links
Sizes and Classification | Description | Downloads | Resources

Select your Product Standard:

BS 8524-1 BS EN 1634-1 UL 10D

Vertical - Single/ Overlapping Rollers 2.4m wide x 3m high 4 hr in masonry / 3hr in gypsum

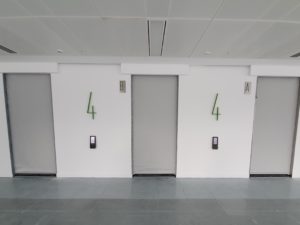

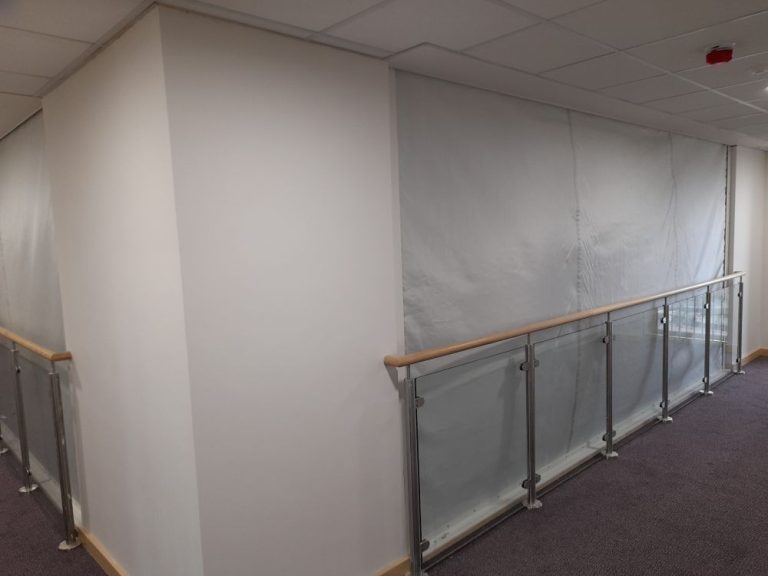

The FireMaster A1 fire & smoke rated curtain has been developed by Coopers to deploy vertically to provide 240 minutes of protection against fire and smoke and is tested to UL standards. The FireMaster® has been developed to protect escalators, atria, openings in walls, boundary protection, stairs, lobbies and cross corridor and area separation in most commercial buildings.

firemaster-a1-firecurtain-UL

Applications: Atrium, Lobbies and Receptions, Opening in Walls, Egress and Corridor Separations, Boundary Protection, Compartmentation, Stairs and Escalators, Lifts and Lift Lobbies, Protected Means of Escape

Available in unlimited widths and drops up to 8 meters and with fixing options to suit all types of ceiling configurations.

The FireMaster A1 Fire & Smoke Rated Curtains are designed to stop both fire and smoke and will deploy immediately upon alarm or an emergency condition. Approved as a 4-Hour Fire Rated and Smoke & Draft Rated Assembly.

The ResQ-WindowTM is a vision panel that can be installed into this fire curtain and allows first responders to assess areas prior to entry.

Minimum widths achievable are as follows:
T Bar – 1300mm
Jumbo Bar – 900mm

FOR FIRE PROTECTION CLASSES EXPLAINED – click here

All fire and smoke curtains are manufactured to bespoke sizes. To discuss your requirements GET IN TOUCH

Downloads
Specification Download
Certificate - UL 10D Download
Certificate - Controls UL 864 Download
Brochure Download
Side Guides Download
Headbox Fixing, Bottom Bar and Capping Variations - PDF only Download
Headbox Fixing, Bottom Bar and Capping Variations - Full Drawing Pack Download
Fabric Datasheet Download

Resources

There are different features available for the Coopers Fire range of fire curtains and smoke curtain barriers. Click on the button below to find out more about Optional Extras, Drives and Controls, Site Wiring Diagrams and other product-related downloads.
