ResQ-Window

The BS 8524-1 compliant ResQ-Window™ is a vision panel window for fire curtains which can be installed into a Coopers Fire fire curtain allowing building occupants and first responders to see through the curtain after it has been deployed.
Coopers Fire ResQ Window Vision Panel for Fire Curtains
Coopers Fire ResQ Window Vision Panel for Fire Curtains
Coopers Fire ResQ Window Vision Panel for Fire Curtains
Coopers Fire ResQ Window Vision Panel for Fire Curtains

KEY INFORMATION

Curtain type:
Fire

Product Standards:
Tested to UL Standards, BS, EN

Standard:
Tested to UL 10D Standard, BS EN 1634-3, BS 8524-1, BS EN 1634-1, BS EN 13501-2

Orientation:
Vertical

Rating:
30 MINUTES, 60 MINUTES, 90 MINUTES, 120 MINUTES

Special features:
Compliant to BS 8524-1, Compliant in accordance with UL 10D with a GSSN (Fire Protective Curtains) classification, Fully tested to BS EN 1634-1 and UL Standards, Product certified through Warrington's CERTIFIRE scheme, Product certified through UL (Underwriters Laboratory)

DOWNLOADS

ResQ-Window Vision Panel

FIRE RESISTANCE OR CLASSIFICATION: E120 EW30 (E = Integrity for 120mins, EW = Radiance for 30mins)


COMPLIANT IN ACCORDANCE WITH UL 10D: UP TO 2 HOURS ENDURANCE

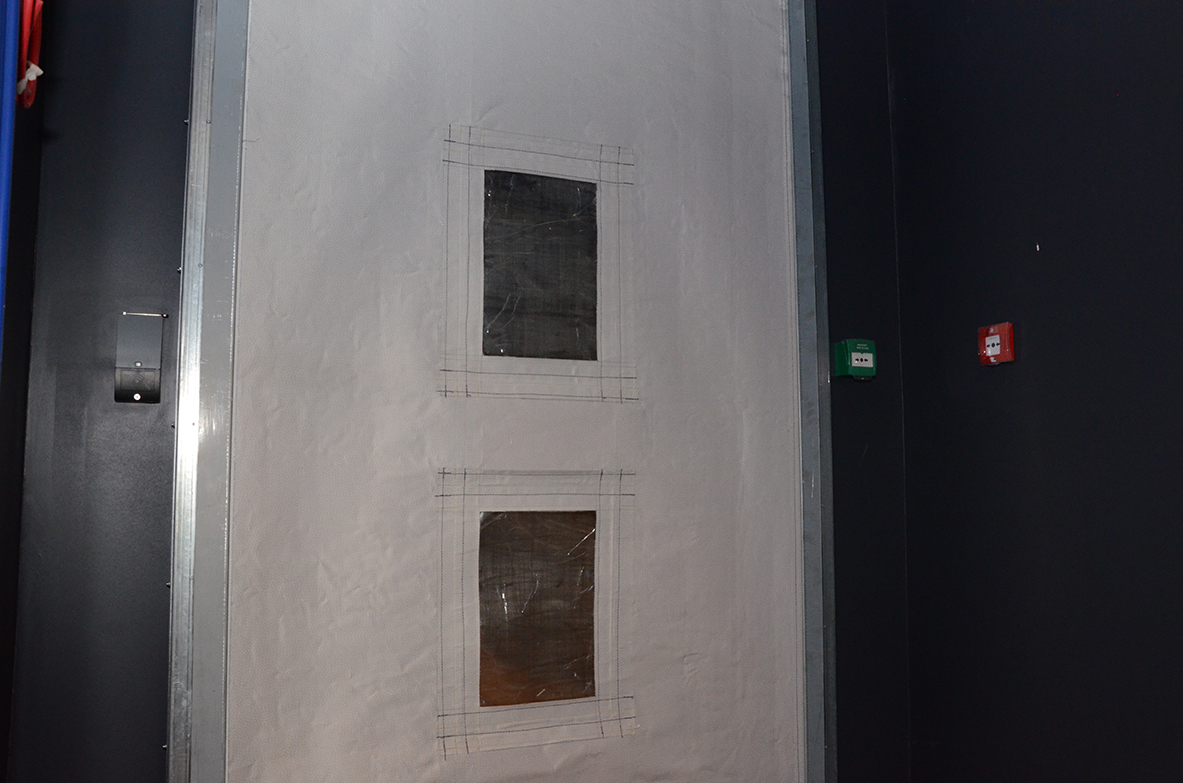

ResQ-Window™ is a patented translucent fire proof flexible material that can be installed into a Coopers Fire fire curtain allowing building occupants and first responders to see through the curtain after it has been deployed.



Patent pending GB2575746. Click Here to find out more

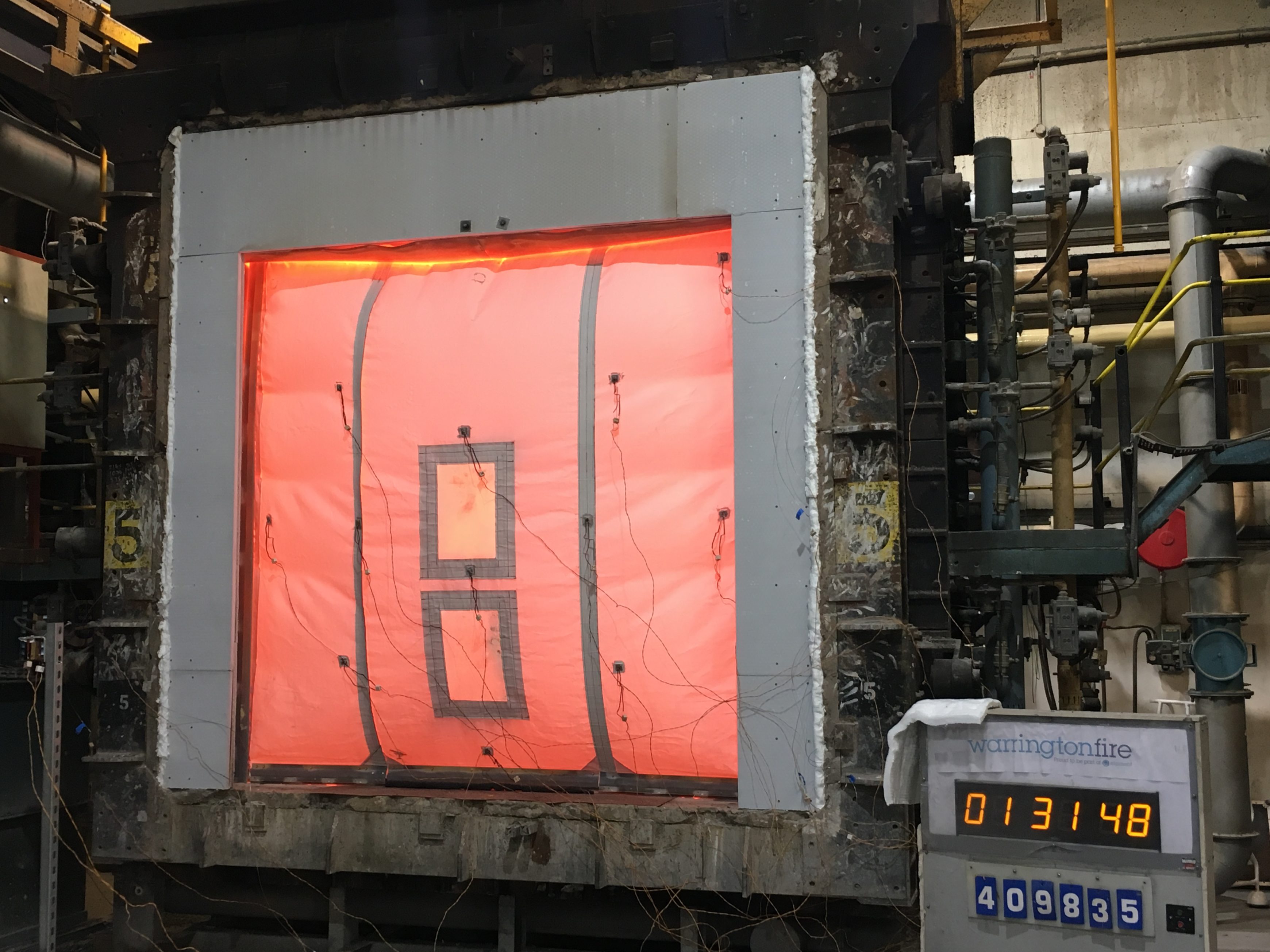

ResQ-Window™ can withstand temperatures in excess of 1000oC with 2 hours integrity (E120) and compliant to BS 8524-1 and UL 10D. The curtain with a vision panel is designed for:

  • Escape routes incorporating doorways and corridors

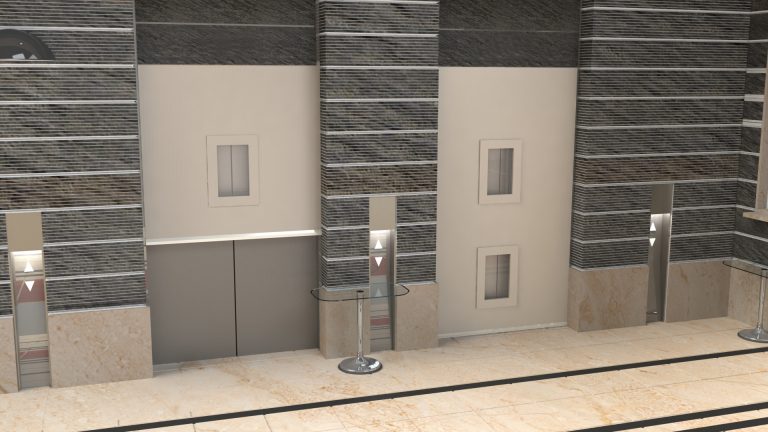

  • Lift openings and lobbies
  • Areas where Fire Marshals and the Fire and Rescue Service may need to assess prior to entry

BS 9999 and Approved Document B both reference the requirement and benefits of vision panels used in fire safety in occupied buildings.



The ResQ-Window™ is compliant in accordance with UL 10D with a GSSN (Fire Protective Curtains) classification. It is third party approved through UL (Underwriters Laboratory) with up to 2 hours endurance for use in gypsum wall type constructions or masonary type wall constructions.

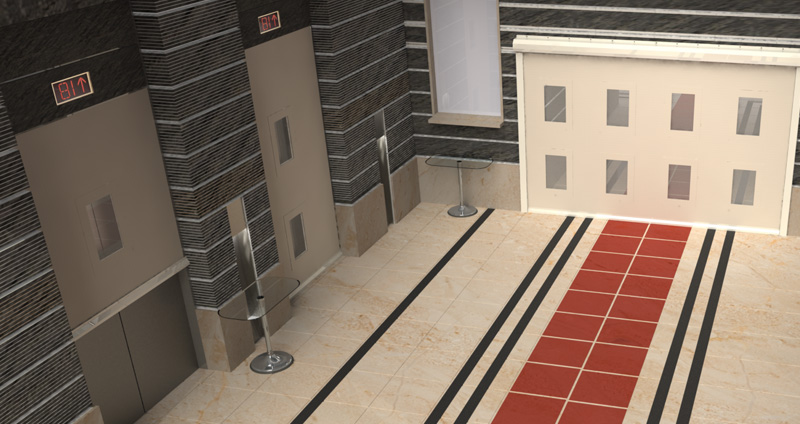

The ResQ-Window™ can be positioned to allow a low and high level view through the curtain if required.



BENEFITS

  • See through a deployed curtain as a means of escape
  • Safely egress from lifts
  • Suitable for lift lobby muster points
  • First responder can clear a building faster
  • First responder can see the presence of an occupant on the other side of a curtain
  • First responder can see the presence of fire on the other side of a curtain
  • First responder can see the presence of smoke on the other side of a curtain
  • BS 8524-1 and UL 10D compliant
