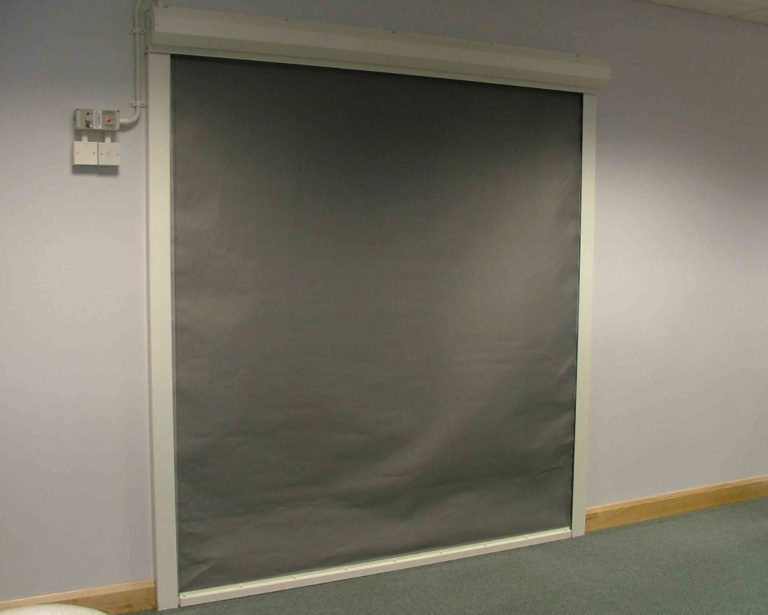

Vii®Fire iZone Fire Curtain – BS 8524

Key Information
  • Curtain Types: Fire Curtains
  • Product Standards: BS 8524-1
  • Standards: BS - British
  • Orientations: Vertical
  • Integrity Ratings: Up to 180 mins
  • Radiation Ratings: Up to 60 mins
  • Special Features: BS 8524-1 Compliant. Classification: E180 EW60, Smoke Seals available for Smoke Control under BS EN 1634-3
fire icon Vertical icon 180 minutes fire rating

Quick Links
Sizes and Classification | Description | Downloads | Resources

Select your Product Standard:

BS 8524-1 BS EN 1634-1

Vertical - Single Roller 2.6m Width x 2.8m High E180 EW60 (E=Integrity, EW=Radiance)

Vii®Fire iZone CAN protect vertical applications AND be installed into any building, including a domestic house, to protect lifts, kitchens, serving hatches and counters, windows and doors, openings in walls, stairs and lobbies, boundary protection and cross corridor separation.

Applications: Atrium, Lobbies and Receptions, Opening in Walls, Egress and Corridor Separations, Boundary Protection, Compartmentation, Stairs and Escalators, Lifts and Lift Lobbies, Protected Means of Escape.

ViiFire i-Zone can also be used to protect windows and form a protective means of escape. Available in standard sizes up to 3m x 3m, ViiFire i-Zone can also be purchased as a supply only product and can be fixed to all types of ceiling configurations and is easily integrated with both solid and suspended ceilings.

ViiFire i-Zone is compliant to BS 8524-1 provides an Insulating Zone, Integrity and Radiation control.

Minimum widths achievable are as follows:
Jumbo Bar – 900mm

FOR FIRE PROTECTION CLASSES EXPLAINED – click here

BIM and NBS Source

nbs source logo

DOWNLOAD BIM MODEL AND NBS SPEC

Coopers Fire can offer support with your BIM Project.
Find out more about Coopers Fire BIM capabilities and how we can help.

Downloads
Specification Download
Certificate Download
Brochure Download
Fixings for Steel, Concrete, Timber, I Beam and Unistrut - Contact Coopers Fire Download
Headbox and Side Guides - PDF Only Download
Headbox and Side Guides - Full Drawing Pack Download
Fabric Datasheet Download
Declaration of Performance Download

Resources

There are different features available for the Coopers Fire range of fire curtains and smoke curtain barriers. Click on the button below to find out more about Optional Extras, Drives and Controls, Site Wiring Diagrams and other product-related downloads.
