FireMaster Plus2 Fire Curtain – BS EN 1634-1

Key Information
  • Curtain Types: Fire Curtains
  • Product Standards: BS EN 1634-1, BS EN 1634-3
  • Standards: BS - British, EN - European
  • Orientations: Vertical
  • Integrity Ratings: Up to 180 mins
  • Radiation Ratings: Up to 90 mins
  • Special Features: Tested to BS EN 1634-1. Classification: E180 EW90, Smoke Seals available for Smoke Control (BS EN 1634-3)

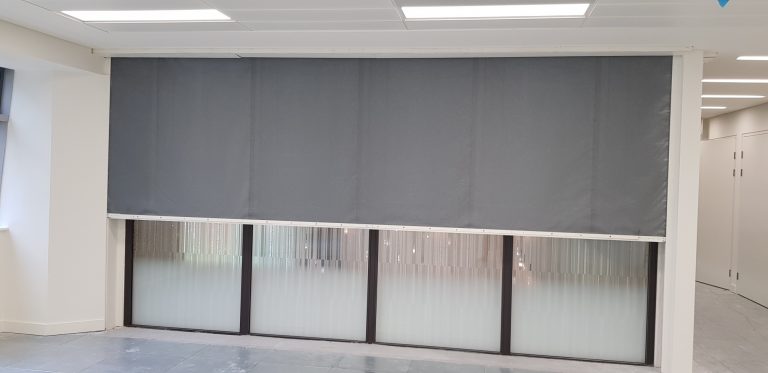

FireMaster Plus2 WSR Fire Curtain
fire icon Vertical icon 180 minutes fire rating

Quick Links
Sizes and Classification | Description | Downloads | Resources

Select your Product Standard:

BS 8524-1 BS EN 1634-1

Vertical - Single Roller 7m Width x 7m High Up to E120 EW90 (E=Integrity, EW=Radiance)
Vertical - Single Roller 7.8m Width x 6.2m High Up to E120 EW90 (E=Integrity, EW=Radiance)
Vertical - Single Roller 7m Width x 4m High Up to E180 EW90 (E=Integrity, EW=Radiance)
Vertical - Wide Single Roller Up to 20m max. width x up to 7m max. drop
Up to E120 EW90 (E=Integrity, EW=Radiance)



FireMaster Plus² is an Active Fire Curtain Barrier Assembly comprising of technologically advanced fire-resistant fabric TO help prevent the spread of fire AND REDUCE RADIANT HEAT. the FireMaster Plus² has been developed by Coopers FIRE to protect all building types and can be applied to protect most vertical applications.

Applications: Protected Means of Escape, Lobbies and Receptions, Opening in Walls, Egress and Corridor Separations, Boundary Protection, Stairs and Escalators, Lifts and Lift Lobbies.

The FireMaster Plus² is a single width fire curtain without overlaps so uses a single roller barrel.

Available in a range of widths and drop sizes, the FireMaster Plus² is supplied with the Coopers Fire Total Gravity Fail Safe system (TGFS) variable speeds, side channels, smoke leakage, integrity and radiance, emergency egress and controlled descent.

The FireMaster Plus² fire curtain is a vertical fire curtain barrier that is tested to BS EN 1634-1, Independently Third Party Accredited and to resist fire for 180 minutes whilst providing radiance protection for up to 90 minutes. (*See published standards for full listings).

Minimum widths achievable are as follows:
T Bar – 1300mm
Jumbo Bar – 900mm

FOR FIRE PROTECTION CLASSES EXPLAINED – click here

BIM and NBS Source

nbs source logo

DOWNLOAD BIM MODEL AND NBS SPEC

Coopers Fire can offer support with your BIM Project.
Find out more about Coopers Fire BIM capabilities and how we can help.

All fire and smoke curtains are manufactured to bespoke sizes. To discuss your requirements GET IN TOUCH

Downloads
Specification Download
Certificate (Certifire) Download
Brochure Download
Headbox Fixing, Bottom Bar and Capping Variations - PDF only Download
Headbox Fixing, Bottom Bar and Capping Variations - Full Drawing Pack Download
Headbox Sizes - T Bar - PDF only Download
Headbox Sizes - T Bar - Full Drawing Pack Download
Headbox Sizes - Jumbo Bar - PDF only Download
Headbox Sizes - Jumbo Bar - Full Drawing Pack Download
Side Guides Download
Fabric Datasheet Download
Declaration of Performance - EN 16034 Download

Resources

There are different features available for the Coopers Fire range of fire curtains and smoke curtain barriers. Click on the button below to find out more about Optional Extras, Drives and Controls, Site Wiring Diagrams and other product-related downloads.
