FireMaster Plus2 Fire Curtain – BS 8524

Key Information
  • Curtain Types: Fire Curtains
  • Product Standards: BS 8524-1
  • Standards: BS - British
  • Orientations: Vertical
  • Integrity Ratings: Up to 180 mins
  • Radiation Ratings: Up to 90 mins
  • Special Features: Radiation Control for up to 90 minutes. Compliant to BS 8524-1. Smoke seals available for Smoke Control. Offers a Protected Means of Escape.
FireMaster Plus2 fire curtain
fire icon Vertical icon 180 minutes fire rating

Quick Links
Sizes and Classification | Description | Downloads | Resources

Select your Product Standard:

BS 8524-1 BS EN 1634-1



Vertical - Single Roller 5m width x 7m drop
Up to E180 EW90 (E=Integrity, EW=Radiance)
Vertical - Wide Single Roller Up to 20m max. width x up to 7m max. drop
Up to E120 EW90 (E=Integrity, EW=Radiance)

From airports to domestic houses, the FireMaster® Plus² has been developed by Coopers to protect all building types and can be applied to protect most vertical applications. Furthermore, the high performance of the FireMaster® Plus² means that it protects openings in walls forming a protective means of escape.

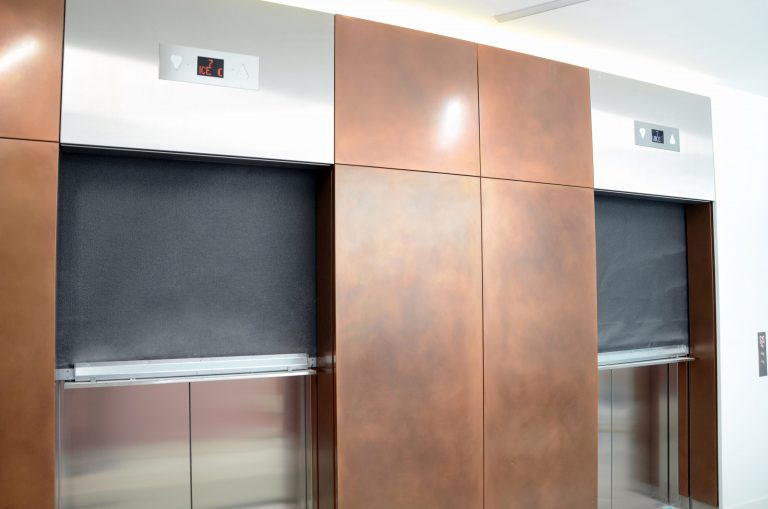

Applications: Protected Means of Escape, Lobbies and Receptions, Opening in Walls, Egress and Corridor Separations, Boundary Protection, Stairs and Escalators, Lifts and Lift Lobbies

Available in a range of widths and drop sizes, the FireMaster Plus² is supplied with the Coopers Total Gravity Fail Safe system (TGFS) variable speeds, side channels, smoke leakage, integrity and radiance, emergency egress and controlled descent.

FireMaster Plus² reduces radiant heat to less than 10 kW/m2 after 60 minutes. FireMaster Plus² is designed to prevent the spread of fire in accordance with BS 8524-1:2013.

With fixing options to suit all types of ceiling configurations, the FireMaster Plus² fire curtain can be integrated with both solid and suspended ceilings and will remain hidden within the ceiling until deployed.

The FireMaster Plus² fire curtain barrier is a vertical fire curtain barrier that is compliant to BS 8524 Part 1, Independently Third Party Accredited and to resist fire for 180 minutes whilst providing radiance protection for up to 90 minutes. (*See published standards for full listings).

Minimum widths achievable are as follows:
T Bar – 1300mm
Jumbo Bar – 900mm

FOR FIRE PROTECTION CLASSES EXPLAINED – click here

BIM and NBS Source

nbs source logo

DOWNLOAD BIM MODEL AND NBS SPEC

Coopers Fire can offer support with your BIM Project.
Find out more about Coopers Fire BIM capabilities and how we can help.

All fire and smoke curtains are manufactured to bespoke sizes. To discuss your requirements GET IN TOUCH

Downloads
Specification Download
Certificate (IFC) Download
Brochure Download
Fixings for Steel, Concrete, Timber, I Beam and Unistrut - Contact Coopers Fire Download
Headbox Fixing, Bottom Bar and Capping Variations - PDF only Download
Headbox Fixing, Bottom Bar and Capping Variations - Full Drawing Pack Download
Fixings for Timber - Full Drawing Pack Download
Headbox Sizes - T Bar - PDF only Download
Headbox Sizes - T Bar - Full Drawing Pack Download
Headbox Sizes - Jumbo Bar - PDF only Download
Headbox Sizes - Jumbo Bar - Full Drawing Pack Download
Side Guides Download
Fabric Datasheet Download
Declaration of Performance Download

Resources

There are different features available for the Coopers Fire range of fire curtains and smoke curtain barriers. Click on the button below to find out more about Optional Extras, Drives and Controls, Site Wiring Diagrams and other product-related downloads.

Resources
