FireMaster A1 Fire Curtain

Key Information
  • Curtain Types: Fire Curtains
  • Product Standards: BS 8524-1, BS EN 1634-1, UL 10D
  • Standards: BS - British, EN - European
  • Orientations: Vertical
  • Integrity Ratings: Up to 240 mins
  • Radiation Ratings: Up to 30 mins
  • Special Features: Compliant to BS 8524-1, BS EN 1634-1 and UL 10D. Smoke Seals available for Smoke Control under BS EN 1634-3

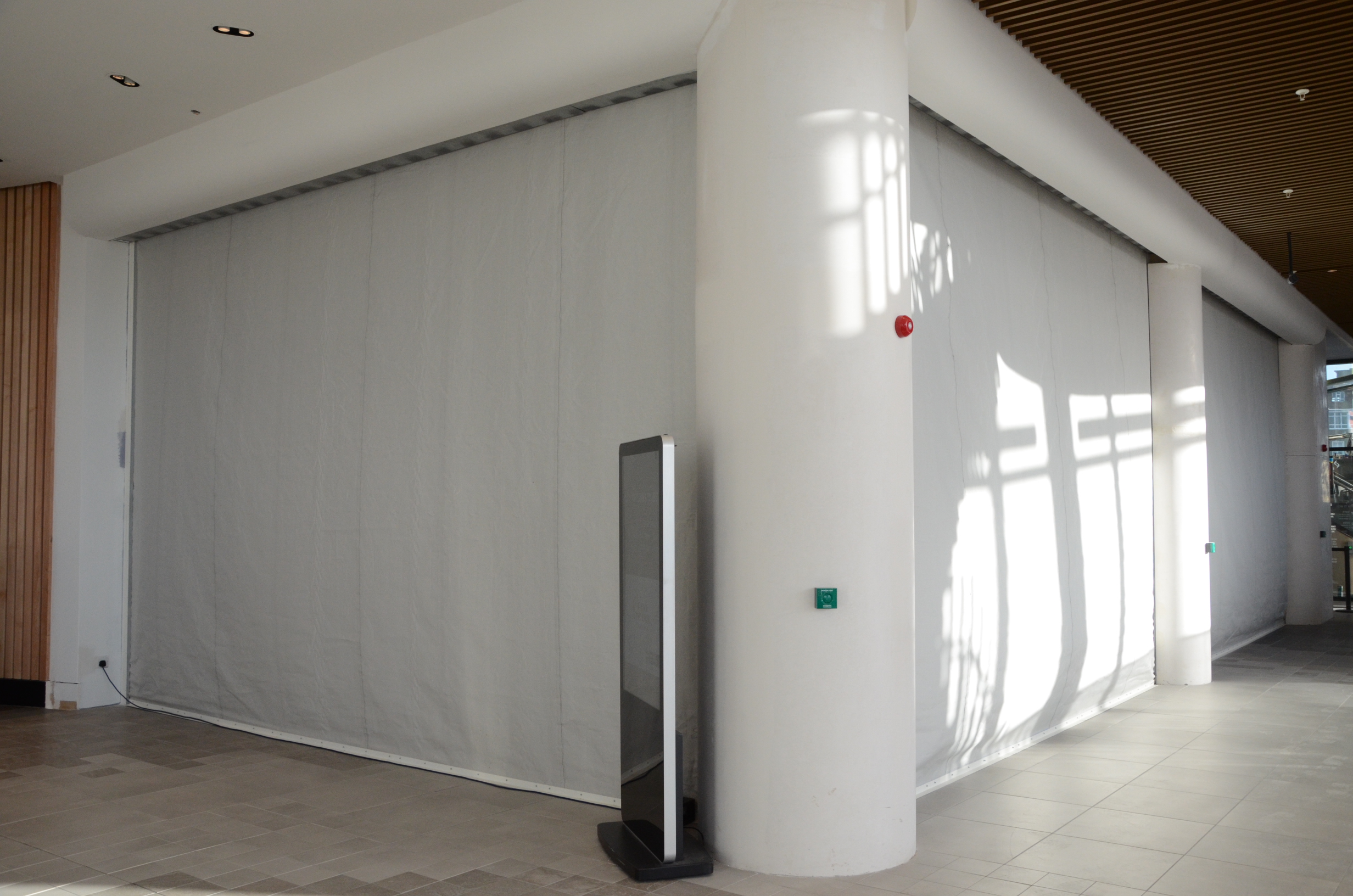

FireMaster Fire curtain at Westquay Southampton
fire icon Vertical icon 240 minutes fire rating

Select your Product Standard:

BS 8524-1 BS EN 1634-1 UL 10D

To download further information, select your product standard.

The FireMaster A1 active fire curtain barrier has been developed to work with all building types, including domestic houses and is supplied with the Coopers Total Gravity Fail Safe (TGFS) system and features variable speed, controlled descent, limits radiation, smoke leakage, emergency egress using an emergency retract button and side guides or channels.

The FireMaster A1 active fire curtain barrier is a vertical fire curtain barrier available in both single and overlapping versions. It is compliant to BS 8524-1, BS EN 1634-1 and UL 10D. Please choose which standard is relevant using the red buttons above.

The FireMaster A1 fire curtain can also offer smoke control and is compliant to BS EN 1634-3 (See published standards for full listings).

The ResQ-WindowTM is a vision panel that can be installed into a FireMaster A1 fire curtain and allows first responders to assess areas prior to entry in the event of a fire.



FireMaster A1 fire curtain

The FireMaster A1 fire curtains is available in unlimited widths and drops up to 8 meters and with fixing options to suit all types of ceiling configurations, the FireMaster A1 active fire curtain barrier can be integrated with both solid and suspended ceilings and will remain hidden within the ceiling until deployed.

FOR FIRE PROTECTION CLASSES EXPLAINED – click here



All fire and smoke curtains are manufactured to bespoke sizes.

To discuss your requirements GET IN TOUCH

Select your Product Standard:

BS 8524-1 BS EN 1634-1 UL 10D

To download further information, select your product standard.

Resources

There are different features available for the Coopers Fire range of fire curtains and smoke curtain barriers. Click on the button below to find out more about Optional Extras, Drives and Controls, Site Wiring Diagrams and other product-related downloads.
