Vii®Fire A1 Fire Curtain – BS EN 1634-1

Key Information
  • Curtain Types: Fire Curtains
  • Product Standards: BS EN 1634-1, BS EN 1634-3
  • Standards: BS - British
  • Orientations: Vertical
  • Integrity Ratings: Up to 120 mins
  • Radiation Ratings: Up to 30 mins
  • Special Features: Tested to BS EN 1634-1. Smoke Seals available for Smoke Control. Classification: E120 EW30,
fire icon Vertical icon 120 minutes fire rating

Quick Links
Sizes and Classification | Description | Downloads | Resources

Select your product standard:

BS 8524-1 BS EN 1634-1

Vertical - Single Roller 3m width x 3m drop (Maximum Size) E120 EW30 (E=Integrity, EW=Radiance)


WITH Fire Resistance up to 120 minutes, the Vii®Fire fire curtain barrier is supplied and fitted with the Coopers Fire Total Gravity Fail Safe (TGFS) system and features variable speed, controlled descent, smoke leakage and side channels as required by fire regulations.

Applications: Atrium, Lobbies and Receptions, Opening in Walls, Egress and Corridor Separations, Boundary Protection, Compartmentation, Stairs and Escalators, Lifts and Lift Lobbies, Protected Means of Escape.

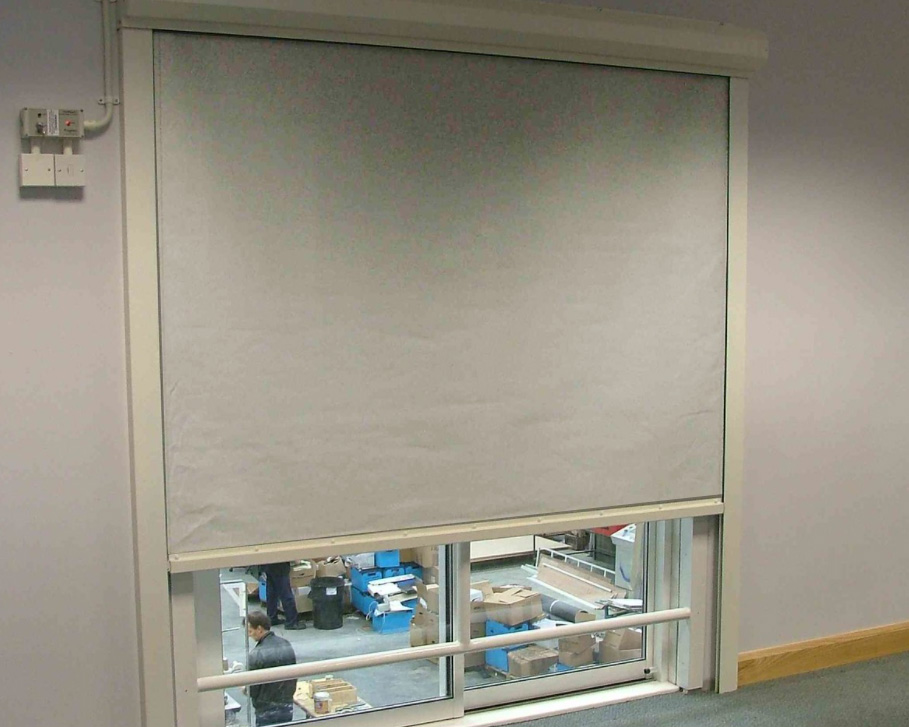

The ViiFire fire curtain barrier is a vertical fire curtain barrier that is tested to BS EN 1634-1 and is third party certified to protect from fire for 120 minutes. It has also been tested to BS EN 1634-3 to can offer Smoke Control using smoke seals.

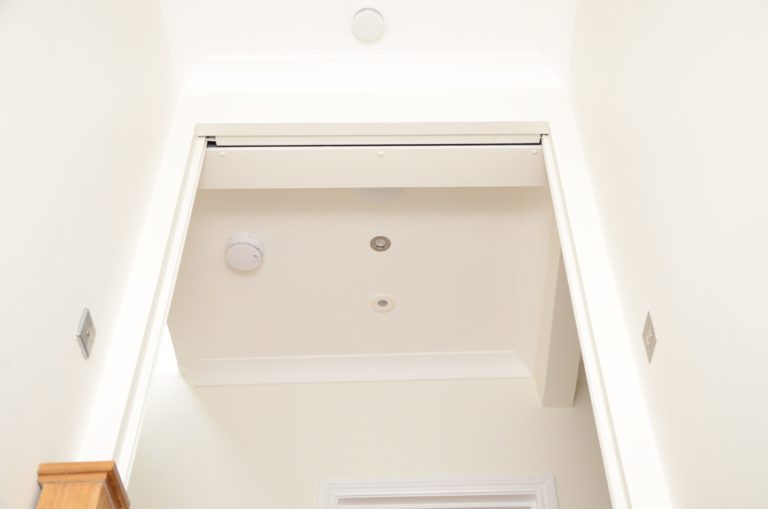

Available in standard sizes up to 3 metres x 3 metres, our ViiFire fire curtain barrier can also be purchased as a supply only product. With fixing options to suit all types of ceiling configurations, the ViiFire can be integrated with both solid and suspended ceilings and will remain hidden within the ceiling until deployed.

Minimum widths achievable are as follows:
Jumbo Bar – 900mm


BIM and NBS Source

nbs source logo


Coopers Fire can offer support with your BIM Project.
Find out more about Coopers Fire BIM capabilities and how we can help.

All fire and smoke curtains are manufactured to bespoke sizes. To discuss your requirements GET IN TOUCH

Specification Download
Certificate Download
Brochure Download
Side Guides & Headbox Drawings - PDF Only Download
Side Guides & Headbox Drawings - Full Drawing Pack Download
Fabric Datasheet Download
Declaration of Performance - EN 16034 Download


There are different features available for the Coopers Fire range of fire curtains and smoke curtain barriers. Click on the button below to find out more about Optional Extras, Drives and Controls, Site Wiring Diagrams and other product-related downloads.
