Vii®Fire A1 Fire Curtain – BS 8524

Key Information
  • Curtain Types: Fire Curtains
  • Product Standards: BS 8524-1
  • Standards: BS - British
  • Orientations: Vertical
  • Integrity Ratings: Up to 120 mins
  • Radiation Ratings: Up to 30 mins
  • Special Features: Compliant to BS 8524-1. Classification: E120 EW30, Smoke Seals available for Smoke Control
fire icon Vertical icon 120 minutes fire rating

Quick Links
Sizes and Classification | Description | Downloads | Resources

Select your product standard:

BS 8524-1 BS EN 1634-1

Vertical - Single Roller 2.6m width x 2.8m drop (Maximum Size) E120 EW30 (E=Integrity, EW=Radiance)

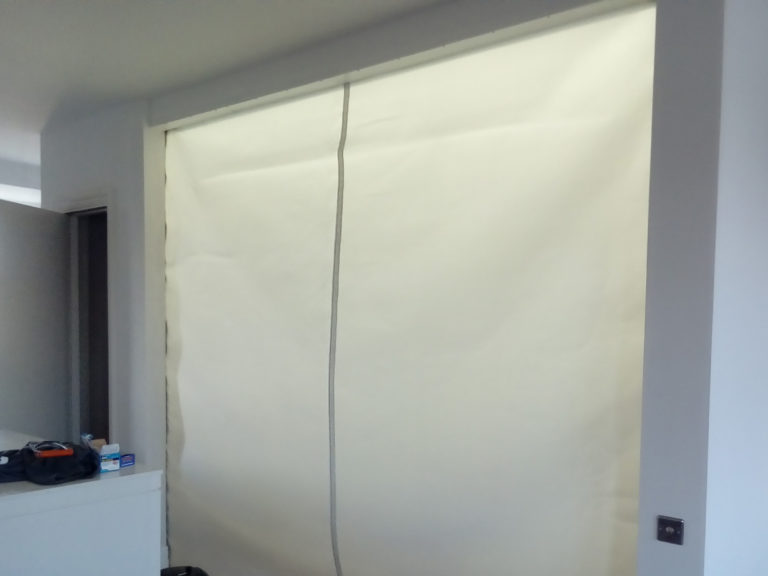

the Vii®Fire fire curtain barrier IS AN ACTIVE FIRE CURTAIN BARRIER FOR DOMESTIC & COMMERCIAL APPLICATIONS That is COmpliant to BS 8524

Applications: Atrium, Lobbies and Receptions, Opening in Walls, Egress and Corridor Separations, Boundary Protection, Compartmentation, Stairs and Escalators, Lifts and Lift Lobbies, Protected Means of Escape

Developed to protect vertical applications, the ViiFire fire curtain barrier can be installed into every standard building, including a domestic house, to protect lifts, kitchens, serving hatches and counters, windows and doors, openings in walls, stairs and lobbies, boundary protection and cross corridor separation.

Available in standard sizes up to 3 metres x 3 metres, our ViiFire fire curtain barrier can also be purchased as a supply only product. With fixing options to suit all types of ceiling configurations, the ViiFire can be integrated with both solid and suspended ceilings and will remain hidden within the ceiling until deployed.

Coopers ViiFire fire curtain barrier is a vertical fire curtain barrier that is compliant to BS 8524-1 and can protect from fire for 120 minutes.

Minimum widths achievable are as follows:
Jumbo Bar – 900mm

FOR FIRE PROTECTION CLASSES EXPLAINED – click here

BIM and NBS Source

nbs source logo

DOWNLOAD BIM MODEL AND NBS SPEC

Coopers Fire can offer support with your BIM Project.
Find out more about Coopers Fire BIM capabilities and how we can help.

All fire and smoke curtains are manufactured to bespoke sizes. To discuss your requirements GET IN TOUCH

Downloads
Specification Download
Brochure Download
Fixings for Steel, Concrete, Timber, I Beam and Unistrut - Contact Coopers Fire Download
Side Guides & Headbox Drawings - PDF Only Download
Side Guides & Headbox Drawings - Full Drawing Pack Download
Fabric Datasheet Download
Declaration of Performance Download

Resources

There are different features available for the Coopers Fire range of fire curtains and smoke curtain barriers. Click on the button below to find out more about Optional Extras, Drives and Controls, Site Wiring Diagrams and other product-related downloads.

Resources
