FireMaster Plus2 Fire Curtain

Key Information
  • Curtain Types: Fire
  • Product Standards: BS 8524-1, BS EN 1634-1
  • Standards: BS - British, EN - European
  • Orientations: Vertical
  • Integrity Ratings: 30 mins, 60 mins, 90 mins, 120 mins, 150 mins, 180 mins
  • Radiation Ratings: 30 mins, 60 mins, 90 mins
  • Special Features: Offers a high level Radiation Control. Classification: E180 EW90, Smoke Seals available for Smoke Control (BS EN 1634-3). Up to 8m drop available
fire icon Vertical icon 180 minutes fire rating

Select your Product Standard:

BS 8524-1 BS EN 1634-1



The high performance of the FireMaster Plus² means that it protects openings in walls forming a protective means of escape. The BS 8524 compliant FireMaster Plus² active fire curtain barrier has been developed to work with all building types, including domestic homes, as well as commercial and retail properties.

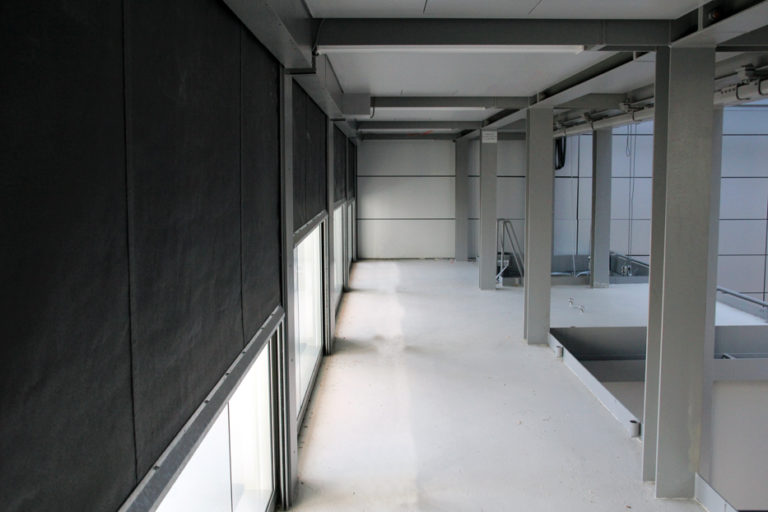

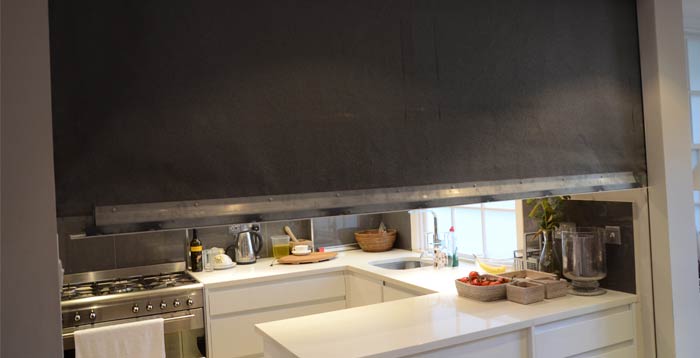

Applications: Protected Means of Escape, Lobbies and Receptions, Opening in Walls, Egress and Corridor Separations, Boundary Protection, Stairs and Escalators, Lifts and Lift Lobbies.

The FireMaster Plus2 is a more advanced fire curtain due to the intumescent fire fabric used developed by Coopers Fire. The fabric, when exposed to temperatures above 160ºC,
forms a rapid expanding carbonaceous char of organic matter and consequently provides a thermal insulating barrier. The thermal insulating barrier creates a tenable zone allowing occupants of a building to safely pass the curtain to safety with a fire burning the other side of the fire curtain.

TheFireMaster Plus² active fire curtain barrier is a vertical fire curtain barrier compliant to BS 8524 Part 1 for single and overlapping curtains and BS EN 1634-1 and provides 180 minutes integrity and uo to 90 minutes radiation control.

The FireMaster Plus² fire curtain can also offer smoke control and is compliant to BS EN 1634-3 (See published standards for full listings).

FOR FIRE PROTECTION CLASSES EXPLAINED – click here
