FireMaster Concertina Egress Fire Curtain

Key Information
  • Curtain Types: Fire Curtains
  • Product Standards: BS EN 1634-1, UL 10D, UL 864
  • Standards: BS - British, EN - European, UL - Underwriters Laboratory
  • Orientations: Multi-sided (Concertina)
  • Integrity Ratings: 120 mins
  • Radiation Ratings: 60 mins
  • Special Features: Tested in accordance and approved to UL 10D and certified to BS EN 1634-1
fire icon Concertina icon 120 minutes fire rating BS icon UL icon

Select your Product Standard:

BS EN 1634-1 UL 10D



The FireMaster® Concertina™ Egress is the first multi-side fire curtain to offer an integral egress door AND IS TESTED AND COMPLIANT TO UL 10D and BS EN 1634-1.

Applications: Atrium, Boundary Protection, Compartmentation, Stairs and Escalators.

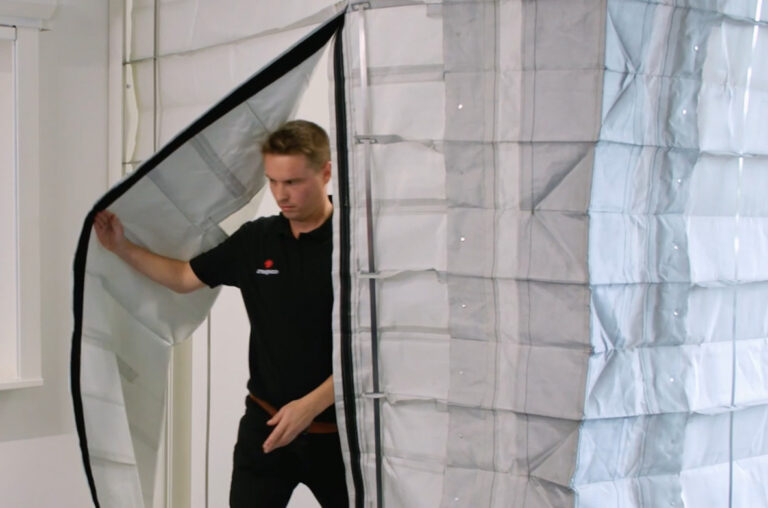

The FireMaster Concertina Egress features the benefit of an integral egress door allowing the safe evacuation of building occupants or emergency services through the barrier without the need to lift the barrier once deployed. This product can be used as part of a fire engineering solution to protect a building and its occupants from the effects of fire.

The FireMaster Concertina Egress has been developed to provide a bespoke alternative to fixed non-loadbearing walls and partitions. It can be used in commercial, domestic and industrial applications such as airports, shopping centres, offices and hotels or where the need for maintaining open areas for access is vital.

European Patent WO 2018/015742 A1Click Here to find out more
Worldwide Patent WO 2018/015742. Click Here to find out more
USA Patent 20190217135. Click Here to find out more

Available in unlimited widths and shapes, the multi-sided fire curtain removes the requirement for columns or corners posts to suit different building applications.

Discover our Concertina Fire Curtain Installation Project List.

FOR FIRE PROTECTION CLASSES EXPLAINED – click here

All fire and smoke curtains are manufactured to bespoke sizes. To discuss your requirements GET IN TOUCH
