FireMaster Smoke and Fire Barrier

Key Information
  • Curtain Types: Fire Curtains
  • Product Standards: NFPA 252, UL 10B/C, UL 10D, UL 1784, UL 864
  • Standards: UL - Underwriters Laboratory
  • Orientations: Vertical
  • Integrity Ratings: Up to 180 mins
  • Special Features: Compliant to UL 10D, UL 10B/C, NFPA 252, UL 1784 and UL 864. Listed through Intertek.
fire icon Vertical icon 180 minutes fire rating

Quick Links
Sizes and Classification | Description | Downloads | Resources

Select your Product Standard:

BS EN 1634-1 UL 10D

Vertical - Single / Overlapping Rollers Unlimited width x 8m drop (Maximum Size) 180 minutes

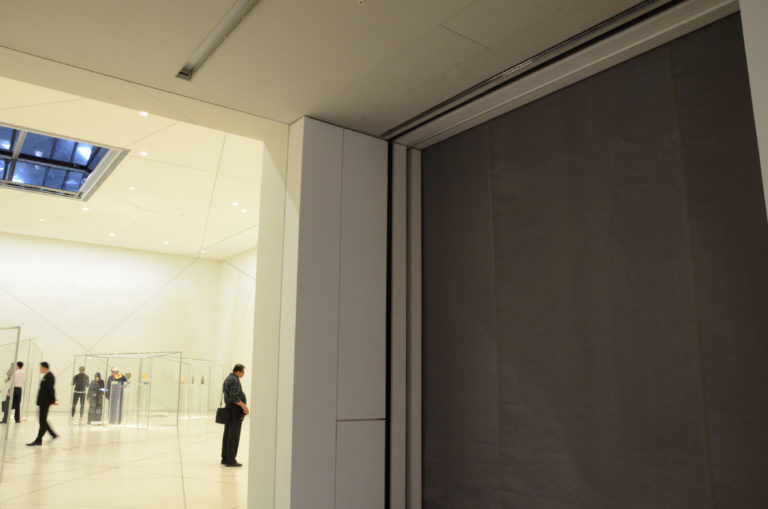

The FireMaster® SMOKE AND FIRE BARRIER has been developed by Coopers to deploy vertically to provide 180 minutes of protection against fire and smoke and is tested to UL standards.

Applications: Atrium, Lobbies and Receptions, Opening in Walls, Egress and Corridor Separations, Boundary Protection, Compartmentation, Stairs and Escalators, Lifts and Lift Lobbies, Protected Means of Escape

Developed and manufactured by Coopers, the FireMaster Smoke and Fire Barrier is supplied as standard with our Total Gravity Fail Safe (TGFS) system with variable speed and controlled descent and includes side pressure channels or side guides reducing smoke leakage. Remains hidden within the ceiling until required.

The FireMaster Smoke and Fire Barrier has been engineered to work in most commercial buildings and can be manufactured to meet any width requirement to a maximum drop of 8 meters. Furthermore, the FireMaster Smoke and Fire Barrier has been developed to suit all types of ceiling configurations and can be integrated with both solid and suspended ceilings.   Tested to NFPA and UL* standards to protect against fire for 180 minutes (20 minutes pre-hose stream). (*See published standards for full listings).


All fire and smoke curtains are manufactured to bespoke sizes. To discuss your requirements GET IN TOUCH

Specification Download
Certificate UL 10D (Intertek) Download
Certificate Controls UL 864 Download
Brochure Download
Side Guides Download
Headbox Sizes - Jumbo Bar - PDF only Download
Headbox Sizes - Jumbo Bar - Full Drawing Pack Download
Headbox Fixing, Bottom Bar and Capping Variations - PDF only Download
Headbox Fixing, Bottom Bar and Capping Variations - Full Drawing Pack Download
Fabric Datasheet Download


There are different features available for the Coopers Fire range of fire curtains and smoke curtain barriers. Click on the button below to find out more about Optional Extras, Drives and Controls, Site Wiring Diagrams and other product-related downloads.
