Vii®Fire iZone Fire Curtain

Key Information
  • Curtain Types: Fire
  • Product Standards: BS 8524-1, BS EN 1634-1, BS EN 1634-3
  • Standards: BS - British, EN - European
  • Orientations: Vertical
  • Integrity Ratings: 30 mins, 60 mins, 90 mins, 120 mins, 150 mins, 180 mins
  • Radiation Ratings: 30 mins, 60 mins
  • Special Features: Compliant to BS 8524-1 and tested to BS EN 1634-1. Classification: E180 EW60, Smoke Seals available for Smoke Control
ViiFire Fire Curtain
fire icon Vertical icon 180 minutes fire rating

Select your Product Standard:

BS 8524-1 BS EN 1634-1

Tthe Vii®Fire i-Zone is Third Party Accredited and is supplied and fitted with the Coopers Fire Total Gravity Fail Safe (TGFS) system and features an insulation zone, variable speed, controlled descent, smoke control and side channels.

ViiFire iZone Fire Curtain

Applications: Atrium, Lobbies and Receptions, Opening in Walls, Egress and Corridor Separations, Boundary Protection, Compartmentation, Stairs and Escalators, Lifts and Lift Lobbies, Protected Means of Escape

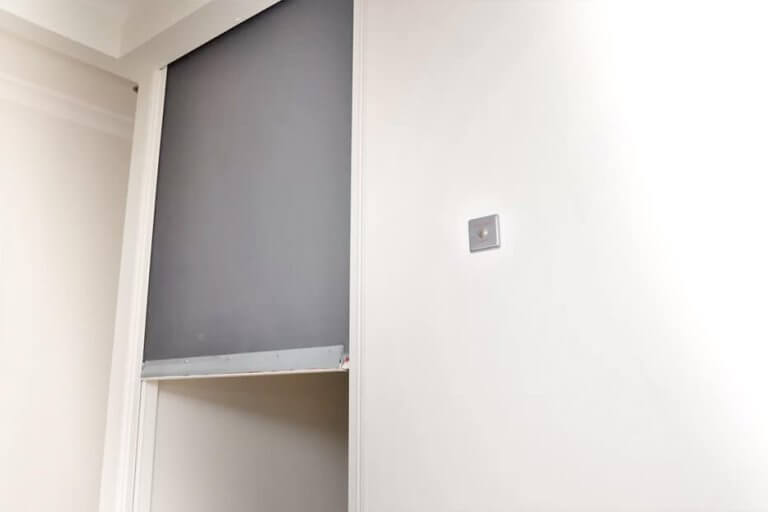

Developed to protect vertical applications, the ViiFire i-Zone can be installed into any standard building, including a domestic house, to protect lifts, kitchens, serving hatches and counters, windows and doors, openings in walls, stairs and lobbies, boundary protection and cross corridor separation.

ViiFire i-Zone can also be used to protect windows and form a protective means of escape. Available in standard sizes up to 4m x 4m, ViiFire i-Zone can also be purchased as a supply only product and can be fixed to all types of ceiling configurations and is easily integrated with both solid and suspended ceilings.

FOR FIRE PROTECTION CLASSES EXPLAINED – click here

Select your Product Standard:

BS 8524-1 BS EN 1634-1
