FireMaster A1 Horizontal Simplex Fire Curtain

Key Information
  • Curtain Types: Fire Curtains
  • Product Standards: BS EN 1634-1
  • Standards: BS - British, EN - European
  • Orientations: Horizontal
  • Integrity Ratings: Up to 120 mins
The FireMaster NVS Simplex Horizontal Fire Curtain
fire icon Simplex icon 120 minutes fire rating

Quick Links
Sizes and Classification | Description | Downloads | Resources



Horizontal - Mini Simplex 2.5m width x 7m length (Maximum Size) 120 minutes (through assessment)
For Radiation performance, contact Coopers Fire
Horizontal - Simplex 7m width x 7m length (Maximum Size) 120 minutes (through assessment)
For Radiation performance, contact Coopers Fire
Horizontal - Simplex 9m width x 9m length (Maximum Size) 90 minutes (through assessment)
For Radiation performance, contact Coopers Fire



From airports to domestic houses, the FireMaster® Simplex™ has been developed by Coopers Fire to protect all building types and can be applied to protect  atria, light wells and stairs from fire.

The FireMaster NVS Simplex Horizontal Fire Curtain

Applications: Atrium, Lobbies and Receptions, Compartmentation and Stairs.

The FireMaster Simplex horizontal fire curtain can be manufactured in a range of sizes and is supplied with integrity and radiation, variable speeds, side channels and controlled closure.

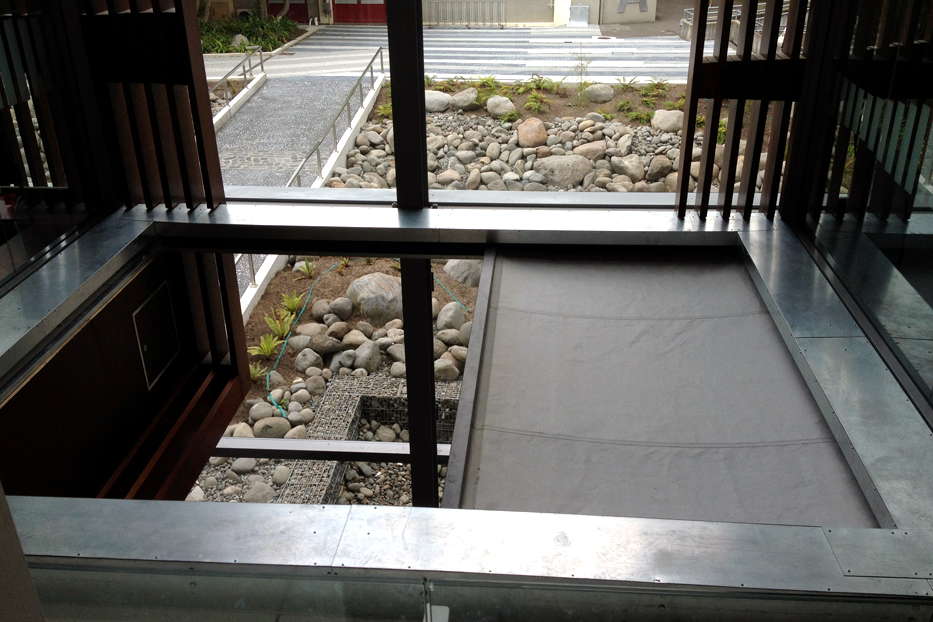

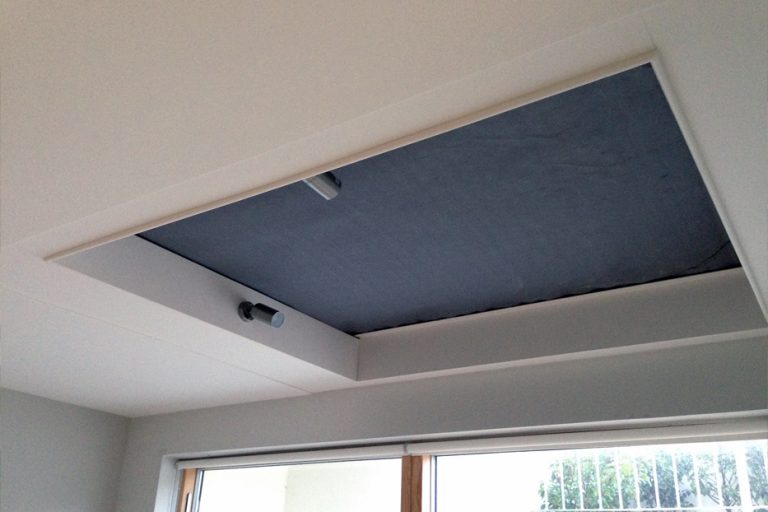

Tensioned between rollers mounted at either end of the void opening, the FireMaster Simplex horizontal fire curtain has been developed to remain hidden within the ceiling or floor using the Coopers “No Visual Supports” (NVS) system, closing only when activated by a fire alarm.

The FireMaster Simplex horizontal fire curtain has Independent Third Party Certification and has been tested to BS EN 1634-1 to protect from fire for 120 minutes.

FOR FIRE PROTECTION CLASSES EXPLAINED – click here

nbs source logo
Download the Coopers Fire BIM Model and NBS Specification here

All fire and smoke curtains are manufactured to bespoke sizes. To discuss your requirements GET IN TOUCH

Downloads
Specification Download
Certification Download
Brochure Download
Headbox Sizes and Arrangement - PDF Only Download
Headbox Sizes and Arrangement - Full Drawing Pack Download
Fabric Datasheet Download
Declaration of Performance Download
