SmokeStop EvacU8® Smoke Curtain

Key Information
  • Curtain Types: Smoke Curtains
  • Product Standards: BS EN 12101
  • Standards: BS - British, EN - European
  • Orientations: Vertical
  • Integrity Ratings: Up to 150 mins
  • Special Features: Classification: D600A
Smoke icon Evacu8 icon 150 minutes smoke rating icon

Quick Links
Sizes and Classification | Description | Downloads | Resources

Vertical - evacU8 Unlimited width x 6.7m drop (Maximum Size) D600A

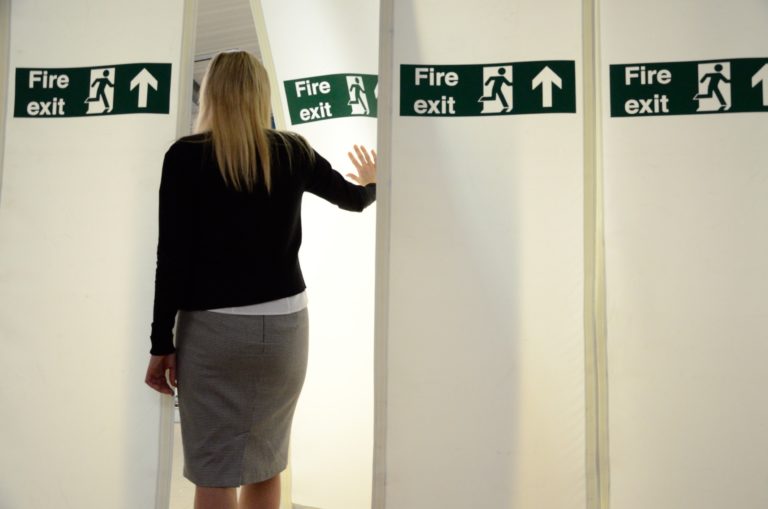

The SmokeStop evacU8® active “WALKTHRU™” is CE Marked and Third Party Certified to provide cross corridor protection whilst allowing occupants to egress on mass. Supplied with Coopers Total Gravity Fail Safe (TGFS) system, smoke control, warning system, variable speed and controlled descent.

Applications: Atrium, Lobbies and Receptions, Opening in Walls, Egress and Corridor Separations, Boundary Protection, Compartmentation, Stairs and Escalators, Lifts and Lift Lobbies, Protected Means of Escape

SmokeStop evacU8 active “WALKTHRU” smoke curtain barrier unique overlapping panel system provides unlimited widths with a maximum drop of 6.7 meters. With fixing options to suit all types of ceiling configurations, the SmokeStop evacU8 active “WALKTHRU” can be integrated with both solid and suspended ceilings and will remain hidden within the ceiling until deployed.

Coopers SmokeStop evacU8 active “WALKTHRU” smoke curtain barrier is a vertical deploying smoke curtain that allows for egress. Compliant to BS EN* and ISO* to control smoke for 150 minutes integrity. (*See published standards for full listings).

All fire and smoke curtains are manufactured to bespoke sizes. To discuss your requirements GET IN TOUCH

Specification Download
Certificate UKCA Download
Brochure Download
Headbox - PDF Only Download
Headbox - Full Drawing Pack Download
Fabric Datasheet Download
Declaration of Performance - CE Marked Download


There are different features available for the Coopers Fire range of fire curtains and smoke curtain barriers. Click on the button below to find out more about Optional Extras, Drives and Controls, Site Wiring Diagrams and other product-related downloads.
