Fire Shutters

Coopers Fire also offer a broad range of fire shutters, which in the event of a fire, deploy to compartmentalise the fire and protect people from the harmful effect of smoke and fire.

KEY INFORMATION

Curtain type:
Fire

Product Standards:
BS

Standard:
BS 476-22.8, BS 476-22.6

Orientation:
Vertical

Rating:
60 MINUTES, 120 MINUTES, 180 MINUTES, 240 MINUTES

Special features:

DOWNLOADS

Fire Shutters

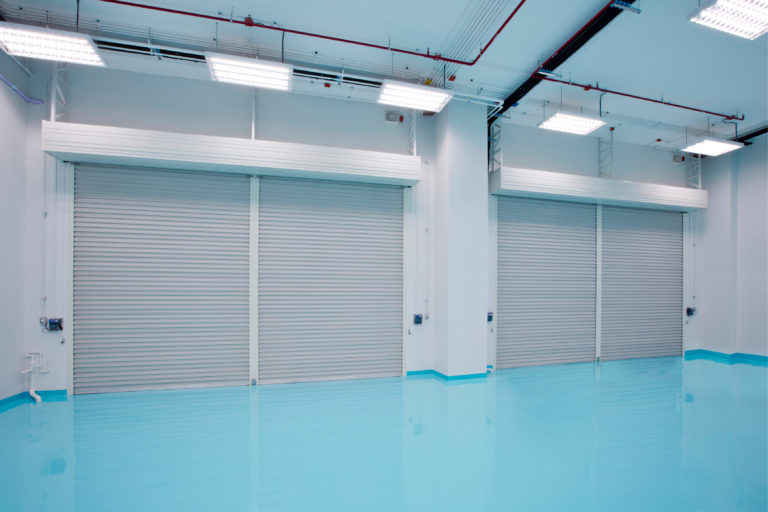

From airports and banks to factories and car parks, fire shutters offer a traditional method of fire protection through maintaining the integrity of internal fire compartment walls.



PLEASE NOTE: Coopers Fire do not manufacture fire shutters but can offer a fire shutter (manufactured by another) as part of a package if fire and/or smoke curtains are required.



Coopers Fire can offer a fire shutter with 1, 2 and 4 hour fire resistance, all of which are designed to close automatically in the event of a fire. Tested in accordance with BS 476: Part 22: 1987, for up to 4 hours fire resistance. Assessed for openings up to 7000mm x 7000mm. Individual assessments available for larger openings.



Fire Shutters can be activated by a thermal fusible link release unit when the local temperature reaches 68 degrees centigrade. The shutter will self-close under a controlled descent. This feature also benefits from a manual test and re-set facility.   Alternatively, the shutter can be linked into the buildings fire alarm system via a 24 volt, solenoid release unit. Upon activation, the shutter will self-close under a controlled descent.



If a fire separating barrier is required without the need for security, a fire curtain could is an option that can be considered. Click here for fire curtains.



Our fire and smoke curtains give architects and designers the freedom to design tomorrow’s award winning buildings without compromising design or fire safety

For over 30 years, professionals have relied upon Coopers high performance fire and smoke curtains to guarantee that their building designs comply with stringent fire regulations
