FireMaster® Cleanroom fire curtain

FireMaster Cleanroom fire curtain is the World's first active fire curtain certified as suitable for all types of cleanroom environments. The product is Fraunhofer approved and fire tested as part of Exova's Certifire scheme
FireMaster Cleanroom Fire Curtain

KEY INFORMATION

Curtain type:
Fire

Product Standards:
BS, EN

Standard:
BS EN 1634-1, BS EN 13501-2, 3rd Party Certification

Orientation:
Vertical

Rating:
120 MINUTES

Special features:
Fire resistance for up to 2 hours (E120), Radiation Control for up to 2 hours (EW120), Suitable for all cleanrooms up to ISO Class 6 (1,000 classification), Resistant to harsh cleanroom cleaning chemicals

DOWNLOADS

FireMaster Cleanroom

FIRE RESISTANCE OR CLASSIFICATION: E120 EW120 (E = Integrity for 120mins, EW = Radiance for 120mins)



The FireMaster Cleanroom is fire resistant for 2 hours and certified as suitable for use in cleanrooms fulfilling the specifications of Air Cleanliness Class 6, according to ISO 14644-1. Dimensions approved to 2.6m width and heights up to 2.8m (structural opening). Increased sizes may be possible under assessment - contact Coopers Fire for further information.



The FireMaster Cleanroom is manufactured from 316L grade stainless steel suitable for use in a cleanroom environment. The FireMaster Cleanroom features a stainless steel curtain that does not release particles in operation and features side guides that can be manually opened and closed for cleaning.

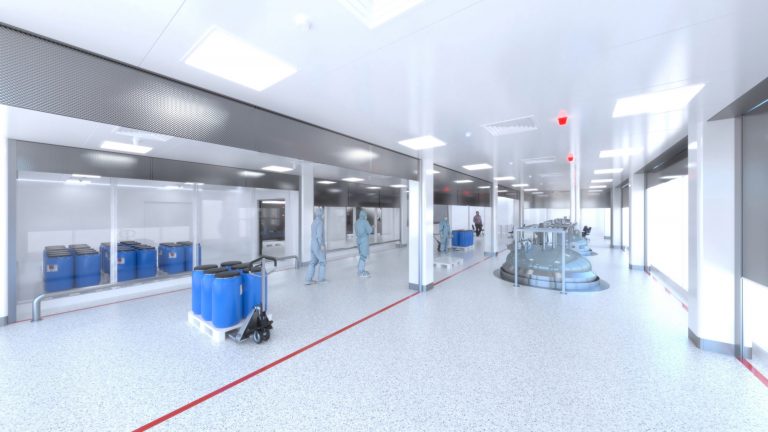

Cleanrooms can be very large and entire manufacturing facilities can be contained within a cleanroom with factory floors covering thousands of square meters that are very sensitive to environmental contamination but still require fire compartmentation.



The FireMaster Cleanroom features a fabric suitable for ISO Class 6 or above applications whilst in operation and due to its unique design features it can be fully deep cleaned whilst in situ in accordance with ISO 2812 (Paints and varnishes - Determination of resistance to liquids).



Fraunhofer FireMaster Cleanroom fire curtain



Fraunhofer approved:

- For use in Cleanrooms fulfilling the specifications of Headbox Air Cleanliness Class 6 according to ISO 14644-1.

- For chemical resistance of the Stainless Steel Curtain according to ISO 4628-1.

- For chemical resistance of the Stainless Steel Structure (headbox and side guides) according to ISO 4628-1.



Exova Warrington's Certifire Scheme

- Fire resistance for up to 2 hours (E120)

- Radiation Control for up to 2 hours (EW120).



See DOWNLOADS on the left hand side for PDF versions of Specifications, Certificates, Fixing Detail, Headbox Drawings and Brochures. For CAD drawings please visit our Technical Drawings page.



FOR FIRE PROTECTION CLASSES EXPLAINED - click here
